Bridge KOD-770 Outdoor
|
KOD-770 Outdoor - KODAMA

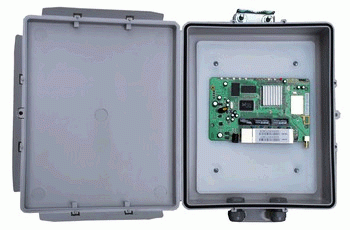

O KOD 770 Outdoor incorpora todas as qualidades do KOD 770, mas agora ficou muito mais simples e pratico instalá-lo externamente, com caixa hermética outdoor, prensa cabos, Kit PoE e dissipador de calor, fazendo dele o radio mais estável da atualidade.
Com 4 Portas LAN, 1 WAN / POE e 150mWatts real de saída, podendo chegar facilmente a 400mWatts de potência sem perder desempenho e confiabilidade.
O Sistema Integrado está mais ágil e com controles mais precisos das funções: Watch Dog, Firewall, controle de banda entre outros.
O mais importante é que o KOD 770 Outdoor manteve suas principais funções: Access-Point, Point to Point, Point to Multi Point, WDS, roteamento de portas e roteamento de modem ADSL e XDLS
Features: • AP / BRIDGE / CLIENT / REPEATER • Supports bridging, routing, VPN, WISP functions between wireless and wired Ethernet interfaces • Supports 64-bit and 128-bit WEP, WPA, WPA2, encryption/decryption and WPA with Radius • Supports IEEE 802.1x Authentication, IAPP, WDS • Supports IEEE 802.3x full duplex flow control on 10/100M Ethernet interface • Supports DHCP server to provide clients auto IP addresses assignment • Supports DHCP client, static IP, PPPoE, PPTP of WAN Interface. • Supports firewall security with port filtering, IP filtering, MAC filtering, port forwarding, trigger port and DMZ hosting functions
• Supports WEB based management and configuration • Supports UPnP for automatic Internet access • Supports Dynamic DNS service • Supports NTP client service • Supports Log table and remote Log service • Supports Setup Wizard mode • Supports Virtual Private Network (VPN) connection • Supports IPSEC tunnel encryption (3DES/AES128) and authentication (MD5/SHA1) Specifications: • Product Name WLAN Broadband Router • 2MB Flash and 16MB SDRAM • Realtek chipset model RTL8186 • Standard 802.11b/g(Wireless), 802.3(10BaseT), 802.3u(100BaseT) • 54Mbps Wireless AP, 18dBm power • Data Transfer Rate 54Mbps(Wireless), 100Mbps(Ethernet) • Modulation Method CCK (802.11b), OFDM (802.11g) • Frequency Band 2.4GHz – 2.497GHz ISM Band, DSSS • RF Output Power CCK< 17 dBm, OFDM< 13.5 dBm • Receiver Sensitivity 802.11b -80 dBm@8%, 802.11g -68 dBm@5% • Operation Range 30 to 280 meters (depend on surrounding) • Antenna Detachable Antenna • LED Power, Active (WLAN), Act/Link (Ethernet) • 64 bit/128 bit WEP, WPA, WPA2, port filtering, IP filtering, MAC filtering, port forwarding and DMZ hosting • One 10/100BaseT with RJ45 port (WAN) • Four 10/100BaseT with RJ45 ports (LAN) • Power Consumption 7.5V DC Power Adapter • Operating Temperature 0 – 50° C ambient temperature • Storage Temperature -20 ~ 70°C ambient temperature • Humidity 5 to 90 % maximum (non-condensing) • Dimension 137 x 96 x 35 mm • Security • LAN interface Software: • Upload de regras • Grupos de Controle de Banda, com rate mínimo garantido por membros do grupo • Watchdog por IP • Roteamento Estático e Dinâmio • Block Relay • PPPoE Relay • DHCP Relay • Assistente de configuração • 3 Modos de Operação: WISP, Router e Bridge • Controle de banda por interface, por endereço IP ou MAC (por HTB) • Criptografia WEP • Autenticação 802.1x, WPA e Radius • Filtro de mac, ip, portas... • DMZ Host • PPPoE-Cliente em todas as interfaces • PPTP Protocol • DDNS Protocol • IAPP Protocol • "Esconde" o SSID evitando ser descoberto por scanners simples • Todo controle via WEB • Medidor de sinal • Watchdog de hardware • Opera como AP, Cliente, WDS+AP, WDS e Ad Hoc • Site Survey • Servidor DHCP • DHCP Cliente • Até 5 IP Alias em cada interface • Suporte a uPNP • Spanning Tree Protocol • Permite a troca da porta do Servidor WEB • Proteção contra gerencimento via WAN • Proteção 802.11g • Auto Discovery Tool • Clonagem de MAC (para somente um cliente) • Permite envio de comandos via interface WEB • Log do sistema (local e remoto) • Configuração em português |
