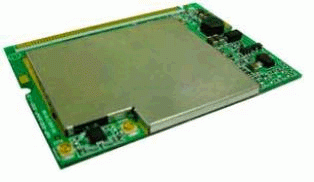

Cartão Mini PCI EMP 8602 + S
Descrição
EMP-8602 PLUS-S is a mini-PCI type III B High-Power card supporting dual-band (2.4GHz & 5GHz) radio operation. It provides high-speed wireless connection with data rate up to 54Mbps. The shirking dimension and light weight can easily integrate into a wide range of AP/Bridge device.
The 802.11g standard is backwards compatible with
802.11b products. This means that you do not need to
change your entire network to maintain connectivity. You
may sacrifice some of 802.11g speed when you mix 802.11b
and 802.11g devices, but you will not lose the ability to
communicate when you incorporate the 802.11g standard
into your 802.11b network
EMP-8602 PLUS-S is a mini-PCI type III B High-Power card supporting dual-band (2.4GHz & 5GHz) radio operation. It provides high-speed wireless connection with data rate up to 54Mbps. The shirking dimension and light weight can easily integrate into a wide range of AP/Bridge device.The 802.11g standard is backwards compatible with
802.11b products. This means that you do not need to
change your entire network to maintain connectivity. You
may sacrifice some of 802.11g speed when you mix 802.11b
and 802.11g devices, but you will not lose the ability to
communicate when you incorporate the 802.11g standard
into your 802.11b network
| Especificações técnicas |
||||
|
Theoretical wireless signal rate based on IEEE standard of 802.11a, b, g chipset used. Actual throughput
may vary. Network conditions and environmental factors lower actual throughput rate.
** All specifications are subject to change without notice. 2/10/2009
Technical SpecificationsData Rates
802.11a: 6, 9, 12, 18, 24, 36, 48, 54Mbps
802.11g: 6, 9, 12, 18, 24, 36, 48,
54Mbps
802.11b: 1, 2, 5.5, 11Mbps
Standards / Compliance
WECA (Wi-Fi & Wi-Fi5 compliance),
IEEE802.11, IEEE802.11a, IEEE802.11g,
IEEE802.11b
Regulation Certifications
FCC Part 15/UL
Operating Voltage
3.3V+0.15V
Current consumption
Tx Current ≦ 1.5A
Rx Current ≦ 400mA
Card on Current ≦ 400mA
Sleep Current ≦ 100mA
RF Information
Frequency Band
802.11a:
4.92~5.08GHz
5.15~5.35GHz
5.47~5.725GHz, 5.725~5.825GHz
802.11b/g:
U.S., Europe and Japan product covering
2.4 to 2.484 GHz, programmable for
different country regulations
Modulation Technology
802.11a/g:
OFDM (64-QAM, 16-QAM, QPSK, BPSK)
802.11b:
DSSS (DBPSK, DQPSK, CCK)
Operating Channels
802.11b/g
11 for North America, 14 for Japan, 13 for
Europe
802.11a
US/Canada:
5.15~5.35GHz, 5.47~5.725GHz,
5.725~5.825GHz
Europe:
5.15~5.35GHz, 5.47~5.725GHz
Japan
4.92~4.98GHz, 5.03~5.091GHz,
5.15~5.25GHz
China: 5.725~5.85GHz
|
Receive Sensitivity (Typical)
802.11a:
-88dBm @ 6Mbps,
-70dBm @ 54Mbps
802.11g:
-90 dBm @ 6Mbps,
-74 dBm @ 54Mbp
802.11b:
-95 dBm @ 1Mbps
-90 dBm @ 11Mbps
Available Transmit Power
(Typical)
PLUS-S FCC
• 4.920~5.080 GHz & 5.150~5350
GHz(IEEE802.11a)
23dBm @6 ~ 24Mbps
21dBm @36Mbps
19dBm @48Mbps
18dBm @54Mbps
• 5.470~5.725GHz(IEEE802.11a)
22dBm @6 ~ 24Mbps
20dBm @36Mbps
18dBm @48Mbps
17dBm @54Mbps
• 5.725~5.825GHz (IEEE802.11a)
21dBm @6 ~ 24Mbps
19dBm @36Mbps
17dBm @48Mbps
16dBm @54Mbps
• 2.412~2.462GHz (IEEE802.11g)
26dBm @6 ~ 24Mbps
23.5dBm@36Mbps
22.5 dBm@48Mbps
21.5dBm@54Mbps
• 2.412~2.462GHz (IEEE802.11b)
27dBm. @1, 2, 5.5 and 11Mbps
PLUS-S ETSI
• 4.920~5.080 GHz & 5.150~5350
GHz(IEEE802.11a)
23dBm @6 ~ 24Mbps
21dBm @36Mbps
19dBm @48Mbps
18dBm @54Mbps
• 5.470~5.725GHz(IEEE802.11a)
22dBm @6 ~ 24Mbps
20dBm @36Mbps
18dBm @48Mbps
17dBm @54Mbps
|
• 2.412~2.472GHz (IEEE802.11g)
26dBm @6 ~ 24Mbps
23.5dBm@36Mbps
22.5 dBm@48Mbps
21.5dBm@54Mbps
• 2.412~2.472GHz (IEEE802.11b)
27dBm. @1, 2, 5.5 and 11Mbps
RF Connector
Two antenna connectors (U.FL)
Form Factor
Mini-PCI type III B
Dimensions (LxWxH)
59.60mm X 44.45mm
Weight
15g (0.53 oz)
Environmental
Temperature Range
Operating: -40°C to +85°C
Storage: -45°Cto 90°C
Humidity (non-condensing)
5% ~ 95% typical
|
