KOD-770 CPE
Descrição

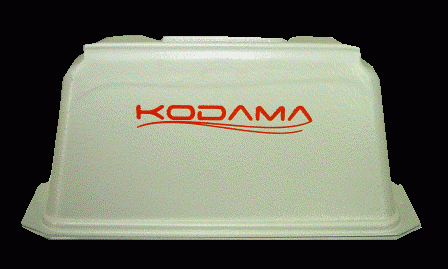

KOD-770 CPE Outdoor 24 DBi e alimentação PoE - KODAMA
 |
 |
Especificações
O KOD 770 Outdoor incorpora todas as qualidades do KOD 770, mas agora ficou muito mais simples e pratico instalá-lo externamente, com um sistema hermético outdoor, Kit PoE,e Antena Integrada de 24 DBi fazendo dele o radio mais estável da atualidade.
O Sistema Integrado está mais ágil e com controles mais precisos das funções: Watch Dog, Firewall, controle de banda entre outros.
O mais importante é que o KOD 770 Outdoor manteve suas principais funções: Access-Point, Point to Point, Point to Multi Point, WDS, roteamento de portas e roteamento de modem ADSL e XDLS
Features:
• AP / BRIDGE / CLIENT / REPEATER
• Supports bridging, routing, VPN, WISP functions between wireless and wired Ethernet interfaces
• Supports 64-bit and 128-bit WEP, WPA, WPA2, encryption/decryption and WPA with Radius
• Supports IEEE 802.1x Authentication, IAPP, WDS
• Supports IEEE 802.3x full duplex flow control on 10/100M Ethernet interface
• Supports DHCP server to provide clients auto IP addresses assignment
• Supports DHCP client, static IP, PPPoE, PPTP of WAN Interface.
• Supports firewall security with port filtering, IP filtering, MAC filtering, port forwarding, trigger port and DMZ hosting functions
• Supports WEB based management and configuration
• Supports UPnP for automatic Internet access
• Supports Dynamic DNS service
• Supports NTP client service
• Supports Log table and remote Log service
• Supports Setup Wizard mode
• Supports Virtual Private Network (VPN) connection
• Supports IPSEC tunnel encryption (3DES/AES128) and authentication (MD5/SHA1)
Specifications:
• Product Name WLAN Broadband Router
• 2MB Flash and 16MB SDRAM
• Realtek chipset model RTL8186
• Standard 802.11b/g(Wireless), 802.3(10BaseT), 802.3u(100BaseT)
• 54Mbps Wireless AP, 18dBm power
• Data Transfer Rate 54Mbps(Wireless), 100Mbps(Ethernet)
• Modulation Method CCK (802.11b), OFDM (802.11g)
• Frequency Band 2.4GHz – 2.497GHz ISM Band, DSSS
• RF Output Power CCK< 17 dBm, OFDM< 13.5 dBm
• Receiver Sensitivity 802.11b -80 dBm@8%, 802.11g -68 dBm@5%
• Operation Range 30 to 280 meters (depend on surrounding)
• Antenna Detachable Antenna
• LED Power, Active (WLAN), Act/Link (Ethernet)
• 64 bit/128 bit WEP, WPA, WPA2, port filtering, IP filtering, MAC filtering, port forwarding and DMZ hosting
• One 10/100BaseT with RJ45 port (WAN)
• Four 10/100BaseT with RJ45 ports (LAN)
• Power Consumption 7.5V DC Power Adapter
• Operating Temperature 0 – 50° C ambient temperature
• Storage Temperature -20 ~ 70°C ambient temperature
• Humidity 5 to 90 % maximum (non-condensing)
• Dimension 137 x 96 x 35 mm
• Security
• LAN interface
Software:
• Upload de regras
• Grupos de Controle de Banda, com rate mínimo garantido por membros do grupo
• Watchdog por IP
• Roteamento Estático e Dinâmio
• Block Relay
• PPPoE Relay
• DHCP Relay
• Assistente de configuração
• 3 Modos de Operação: WISP, Router e Bridge
• Controle de banda por interface, por endereço IP ou MAC (por HTB)
• Criptografia WEP
• Autenticação 802.1x, WPA e Radius
• Filtro de mac, ip, portas...
• DMZ Host
• PPPoE-Cliente em todas as interfaces
• PPTP Protocol
• DDNS Protocol
• IAPP Protocol
• "Esconde" o SSID evitando ser descoberto por scanners simples
• Todo controle via WEB
• Medidor de sinal
• Watchdog de hardware
• Opera como AP, Cliente, WDS+AP, WDS e Ad Hoc
• Site Survey
• Servidor DHCP
• DHCP Cliente
• Até 5 IP Alias em cada interface
• Suporte a uPNP
• Spanning Tree Protocol
• Permite a troca da porta do Servidor WEB
• Proteção contra gerencimento via WAN
• Proteção 802.11g
• Auto Discovery Tool
• Clonagem de MAC (para somente um cliente)
• Permite envio de comandos via interface WEB
• Log do sistema (local e remoto)
• Configuração em português
• Supports WEB based management and configuration
• Supports UPnP for automatic Internet access
• Supports Dynamic DNS service
• Supports NTP client service
• Supports Log table and remote Log service
• Supports Setup Wizard mode
• Supports Virtual Private Network (VPN) connection
• Supports IPSEC tunnel encryption (3DES/AES128) and authentication (MD5/SHA1)
Specifications:
• Product Name WLAN Broadband Router
• 2MB Flash and 16MB SDRAM
• Realtek chipset model RTL8186
• Standard 802.11b/g(Wireless), 802.3(10BaseT), 802.3u(100BaseT)
• 54Mbps Wireless AP, 18dBm power
• Data Transfer Rate 54Mbps(Wireless), 100Mbps(Ethernet)
• Modulation Method CCK (802.11b), OFDM (802.11g)
• Frequency Band 2.4GHz – 2.497GHz ISM Band, DSSS
• RF Output Power CCK< 17 dBm, OFDM< 13.5 dBm
• Receiver Sensitivity 802.11b -80 dBm@8%, 802.11g -68 dBm@5%
• Operation Range 30 to 280 meters (depend on surrounding)
• Antenna Detachable Antenna
• LED Power, Active (WLAN), Act/Link (Ethernet)
• 64 bit/128 bit WEP, WPA, WPA2, port filtering, IP filtering, MAC filtering, port forwarding and DMZ hosting
• One 10/100BaseT with RJ45 port (WAN)
• Four 10/100BaseT with RJ45 ports (LAN)
• Power Consumption 7.5V DC Power Adapter
• Operating Temperature 0 – 50° C ambient temperature
• Storage Temperature -20 ~ 70°C ambient temperature
• Humidity 5 to 90 % maximum (non-condensing)
• Dimension 137 x 96 x 35 mm
• Security
• LAN interface
Software:
• Upload de regras
• Grupos de Controle de Banda, com rate mínimo garantido por membros do grupo
• Watchdog por IP
• Roteamento Estático e Dinâmio
• Block Relay
• PPPoE Relay
• DHCP Relay
• Assistente de configuração
• 3 Modos de Operação: WISP, Router e Bridge
• Controle de banda por interface, por endereço IP ou MAC (por HTB)
• Criptografia WEP
• Autenticação 802.1x, WPA e Radius
• Filtro de mac, ip, portas...
• DMZ Host
• PPPoE-Cliente em todas as interfaces
• PPTP Protocol
• DDNS Protocol
• IAPP Protocol
• "Esconde" o SSID evitando ser descoberto por scanners simples
• Todo controle via WEB
• Medidor de sinal
• Watchdog de hardware
• Opera como AP, Cliente, WDS+AP, WDS e Ad Hoc
• Site Survey
• Servidor DHCP
• DHCP Cliente
• Até 5 IP Alias em cada interface
• Suporte a uPNP
• Spanning Tree Protocol
• Permite a troca da porta do Servidor WEB
• Proteção contra gerencimento via WAN
• Proteção 802.11g
• Auto Discovery Tool
• Clonagem de MAC (para somente um cliente)
• Permite envio de comandos via interface WEB
• Log do sistema (local e remoto)
• Configuração em português
